Introduction

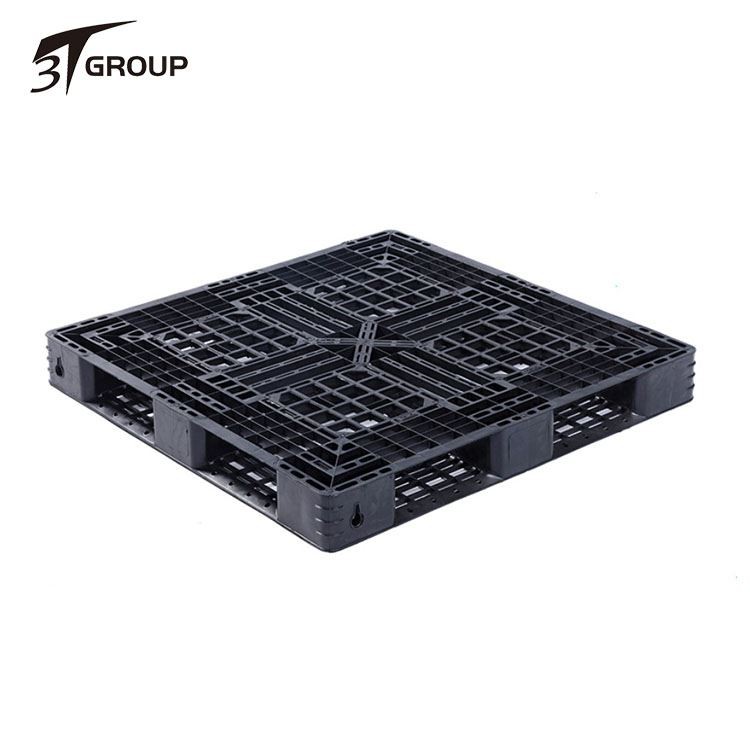

Plastic pallets have been used in the food industry for many years. Vegetables, fruits, rice, and other crops can all be used with pallets. Pallets provide great convenience for the storage and transportation of these products. Therefore, plastic pallet for rice,vegetables, and fruit trays are now relatively ordinary trays. Although the requirements and the production process are stricter, it is still relatively easy and simple for us.

Material

HDPE (high-density polyethylene) has high density and strong impact resistance, suitable for low-temperature environment; PP (polypropylene) is acid and alkali resistant, high temperature resistant (up to 80°C), suitable for humid storage. Both are non-toxic and meet food contact standards.

size

1200×1000mm is suitable for European standard shelves, 1100×1100mm is suitable for Asian standards; the socket height is 150mm±5mm, compatible with manual forklifts (load ≤2 tons) and mechanical forklifts.

load-bearing capacity

Static load-bearing capacity of 1-2 tons requires 9-12 reinforcement ribs at the bottom; dynamic load-bearing capacity of more than 500kg requires wall thickness ≥4mm, and the bending degree during forklift transportation is <5mm/m.

Structural design

Grid design

The grid of Double Faced Reversable Plastic Pallets aperture is usually 30-50mm, balancing ventilation and load-bearing, reducing the weight of the pallet (20%-30% lighter than a solid pallet), and the bottom reinforcement ribs prevent deformation.

Plane design

The surface anti-slip pattern of Double Sided Plastic Pallets is about 1-2mm deep, or a rubber pad (3-5mm thick) is embedded, with a friction coefficient of ≥0.5 to ensure stable stacking of rice bags.

Edge reinforcement

The fence height is 10-15cm, with an inward tilt of 5° to prevent slipping; the folding hinge is made of stainless steel, which automatically locks when bearing weight, and can save 60% storage space when empty.

Products Specification

Size	Dynamic Load	Static Load	volume (100pcs)
1200L1000W150Hmm	1200KG	4000KG	18CBM
1100L1100W150Hmm	800KG	3000KG	18CBM
1200L1000W125Hmm	800KG	2000KG	15CBM
1100L1100W150Hmm	1200KG	4000KG	18CBM
1300L1000W150Hmm	1500KG	5000KG	22CBM

Special functional design

Anti-slip surface

3-5mm anti-slip rubber pad of Double Deck Stackable Plastic Pallet, rubber pad passed ISO 9001 wear test, life span > 5 years.

Four-sided fork

Socket width of Plastic Pallet Double Sides are 180-200mm, height 100mm, bottom crossbeam reinforcement, support AGV forklift two-way handling.

Steel lining reinforcement

Built-in galvanized steel pipe (diameter 20-25mm), dynamic load-bearing increased by 30%, but the dead weight increased by 15%-20%.

Applicable scenarios

Indoor warehouse

HDPE Heavy Duty Double Sides Stackable Plastic Pallets have weak weather resistance and need to avoid environments with temperature differences > 40℃; PP pallets are suitable for constant temperature warehouses.

Humid environment

Choose pallets with added mildew inhibitors (such as nanosilver), which can still resist creep when humidity > 80%.

Automated warehouse

Dimensional error needs to be < ±2mm, RFID chip slot embedded in the bottom, compatible with intelligent management system.

Advantages and disadvantages of six runner grid pallets

Advantages

Cement Bags Stack Use Plastic Pallet use "+" shaped cross supports, which disperse the force more evenly and are especially suitable for carrying heavy regular goods (such as metal parts and boxed goods), reducing the risk of local deformation. The grid gaps increase the ventilation area, which is conducive to reducing the accumulation of condensed water in humid environments (such as cold storage) and extending the storage period of goods.

Disadvantages

The single-sided design causes wear to be concentrated on the same surface, and long-term forklift insertion and removal can easily wear the bottom grid, reducing its life; if the goods are not flat when stacking, the single-sided support may cause the Reusable Rice Use Plastic Pallet to tilt, and it needs to be fixed with straps.

Notes

Stacking quantity

50kg rice bags per layer ≤ 10 bags, stacking height ≤ 4 layers, center of gravity offset <5cm to prevent overturning.

Cleaning

Wipe with neutral detergent every month, strong acid and alkali are prohibited, and residual moisture needs to be air-dried to prevent mildew.

Sun protection

When storing outdoors, choose a pallet with UV stabilizer added, or cover with sunshade cloth to delay aging for more than 3 years.

Advantages and Disadvantages of Double-Sided Grid Pallets

01/

Advantages

Heavy Duty Stacking Pallet can be used alternately, and the function can be restored by flipping over after one side is worn, which increases the service life by 30%-50%; both sides can be plugged into forklifts, which is suitable for two-way logistics operations (such as alternating loading and unloading), reducing pallet turning time and improving handling efficiency.

02/

Disadvantages

The Heavy Duty Large Stackable Reversible Plastic Pallet structure increases the dead weight (such as the weight increase of plastic pallets by about 15%), and manual handling is laborious; the complex structure may reduce ventilation efficiency (the porosity is about 20% lower than that of 6 runner), and it needs to be selected carefully for scenes with high heat dissipation requirements.

Applicable scenarios

01/

Applicable scenarios for 6runner pallets

For example, heavy goods such as cement bags and tiles in the building materials industry need to bear a load of 1-2 tons at a time. This structure can prevent the middle of the Rice Bags Storage Use Plastic Pallet from collapsing; in agricultural product storage, grid ventilation can inhibit grain mildew and meet short-term turnover needs at a low cost.

02/

Applicable scenarios for double-sided pallets

In cold chain logistics, Heavy Duty Large Stackable Reversible Plastic Pallet can be turned over and cleaned regularly to avoid frost accumulation; in automated stereoscopic warehouses, double-sided forks are adapted to AGV robots for two-way operation, reducing equipment turning space and improving storage density and turnover efficiency.

Purchase decision recommendations

01/

6 runner pallet decision

For short-term projects or small and medium-sized enterprises with limited budgets, Rice Use Stackable Plastic Pallet can be used with pallet pads to share the pressure; when stacking heavy goods, it is recommended to place in different directions, and the dynamic load of a single Industrial Use Six Runners Plastic Palletcan reach 1.5 tons.

02/

Double-sided pallet decision

For third-party logistics companies with high turnover rates, double-sided pallets are suitable for automated production lines to reduce manual intervention; it is different from Three Skids Racking Plastic Pallet, andit is recommended to purchase blue/red pallets to distinguish functions (such as blue for cold chain), and formulate a regular flip maintenance plan

FAQ

Q1	What materials you use in your factory for your pallets?
A1	HDPE and PP material
Q2	Any difference between PP and HDPE ?
A2	We do food grade product with PP and others is HDPE
Q3	Is the materials environmental or not?
A3	Our materials are all eco friendly in our factory.
Q4	Do you use recyceld plastic in your factory to make the pallets?
A4	Yes we do and it is only for one time useful product
Q5	Can you make difference product weight for one kind of product?
A5	Normally ,one mold only can produce one kind stable weight product
